PRODUCT DESCRIPTION

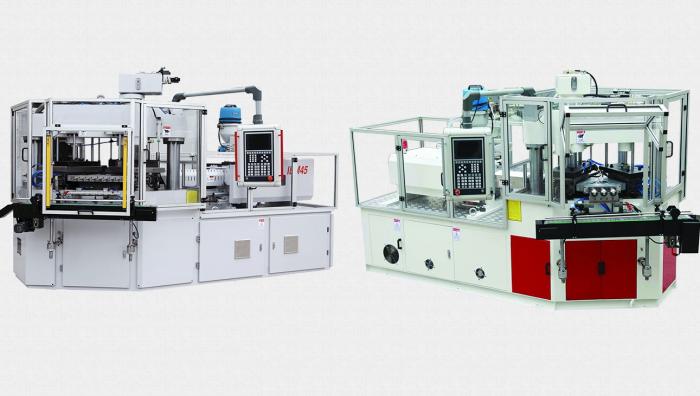

Machine Brief:
1、The clamping framework adopts single-crossbeam, double poles, which enlarge the space of setting mould, much easier to install mould.
2、Unique PREFILL technology and variable displacement pump pressurizing technology are applied to hydraulic system to achieve high efficiency and more reliable.
3、Specialized control system: Adapting the specified controller and software, after completion of machine’s commission and parameter setting, all the settled parameters can make use of SD card for storage and re-install into other machines, it is really very convenience for function testing and after service.
4、Energy saving: Refer to our testing result, this system can save minimum 35% of energy consumption at any machine. And also it can joint together with special boards and software installed to achieve the totally energy consumption and unit product energy consumption, and help the customers to understand the production cost.
5、Stripper station adopts long-distance digital laser sensor for detection, to protect mould safety
6、Stripper station installs light curtain, to protect personal safety
7、Optional servo rotary, precise, long using time, easy maintenance, save energy.
8、Optional injection with all-electric way, replacing hydraulic way
9、CE certificate
Machine Specification List:
|
ITEM |
UNIT |
IBM25 |
IBM35 |
IBM45 |
IBM60 |
IBM75 |
| Diameter of screw |
MM |
35 |
40 |
45 |
50 |
50 |
| Injection
weight |
G |
146 |
176 |
260 |
314 |
400 |
| Heating
capacity |
KW |
6.5 |
7.2 |
10 |
10 |
12 |
| Control area of electric heating |
QTY |
3 |
3 |
3 |
3 |
5 |
| Clamping force of injection |
KN |
280 |
350 |
450 |
600 |
750 |
| Clamping force of
blow |
KN |
30 |
40 |
78 |
89 |
150 |
| Opening stroke of mold platen |
MM |
120 |
120 |
120 |
140 |
140 |
| Max. plate size of die(L*W) |
MM |
300*220 |
420*340 |
580*390 |
740*390 |
840*460 |
| Min. dia. thickness(H) |
MM |
180 |
180 |
240 |
280 |
280 |
| Motor power |
KW |
15 |
15 |
18.5 |
23 |
30 |
| Heating capacity of mould |
KW |
2.0 |
2.8 |
4.0 |
5.0 |
6.0 |
| Pressure of hydraulics system |
MPA |
14 |
14 |
14 |
14 |
14 |
| Min. air pressure |
MPA |
0.8 |
0.8 |
1.0 |
1.0 |
1.0 |
| Discharge rate of compressed air |
M3/min |
≥0.7 |
≥0.7 |
≥0.8 |
≥0.8 |
≥0.8 |
| Consumption of cooling water |
M3/hr |
3 |
3 |
3 |
4 |
5 |
| Machine weight |
T |
2.5 |
3.0 |
5 |
7.5 |
10 |
| Suitable
bottle Range |
ML |
3-500 |
3-600 |
5-600 |
5-800 |
5-1000 |
| Max. Height of
bottle |
MM |
≤145 |
≤175 |
≤200 |
≤200 |
≤200 |
| Max. dia. of the bottle |
MM |
≤60 |
≤75 |
≤80 |
≤80 |
≤100 |
| Total power |
KW |
24 |
25 |
35 |
45 |
46 |

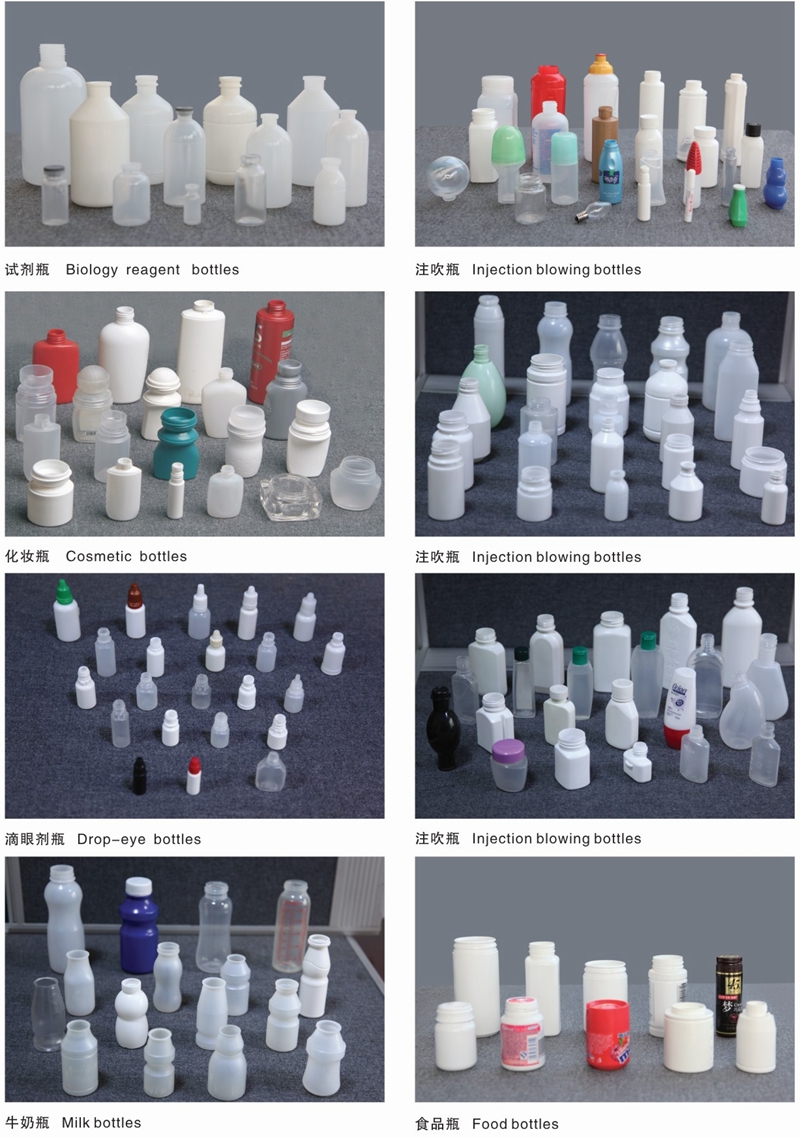

Products Samples Show:
