PRODUCT DESCRIPTION

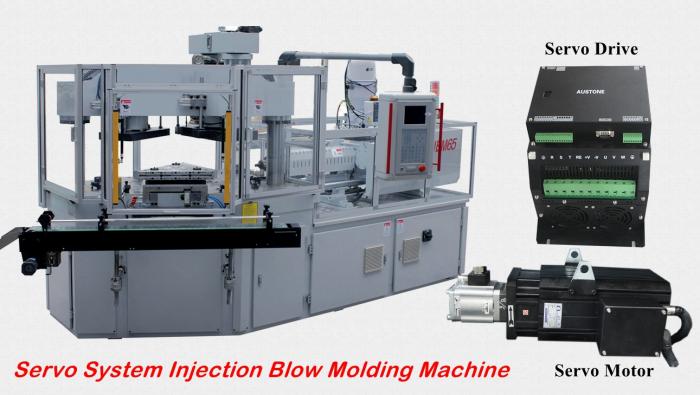

Servo Machine Introduction:

1. Machine using Electro-hydraulic hybrid servo system, energy saving up to 40%
2. Unique Prefill technology and vaiable displacement pump pressurizing technology, to make high efficiency and reliable machine.
3. Clamping framework adopt single-crossbeam, double poles, which enlarge the space of mold setting, moe easier for mold installation.

Machine Specification:

Item			Unit	Date
注射系统Injection system	螺杆直径	Screw Diameter	mm	45
	理论注射量	Max. Theoretical injection capacity	G	260
	加热功率	Heating capacity	KW	10
	电热控制区	No. of heating area	Qty	3
合模&吹塑系统 Clamping & blowing system	注射锁模力	Clamping force of injection	kn	450
	吹塑锁模力	Clamping force of blowing	kn	78
	开模行程	Opening stroke of mold platen	mm	120
	最大模板尺寸	Max. Platen size (L×W)	mm	560×390
	最小模具厚度	Min. Mold thickness (H)	mm	240
	模具加热功率	Heating capacity of mould	KW	4.0
制品尺寸范围Product dimension range	制品容积	Suitable bottle range	ml	3-800
	制品高度	Max. bottle height	mm	≤200
	制品直径	Max. Dia. of  bottle	mm	≤80
液压系统Hydraulic driving system	驱动电机	Motor power	KW	18.7/22
	系统压力	hydraulic pressure	Mpa	14
气水供应Pneumatic system	空气压力	Min. Air pressure	Mpa	1.0
	空气排量	Discharge rate of compressed air	M3/mm	≥0.8
冷却系统Cooling system	冷却水流量	Water flowage	M3/h	3
	额定总功率	Total rated power with mold heating	KW	34/38
机器信息 Machine information	设备尺寸	Dimension	M	3.5×1.4×2.3
	设备净重	machine weight	Ton	6.0
