PRODUCT DESCRIPTION

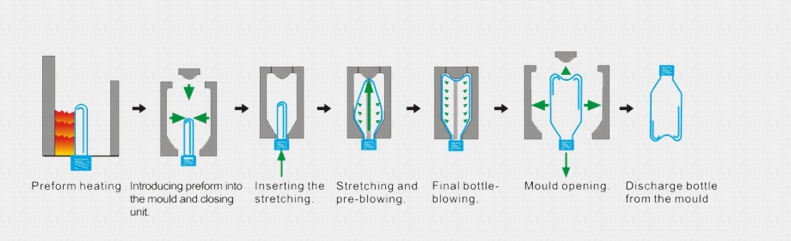

PET Bottle Production Flow:
Machine Brief:

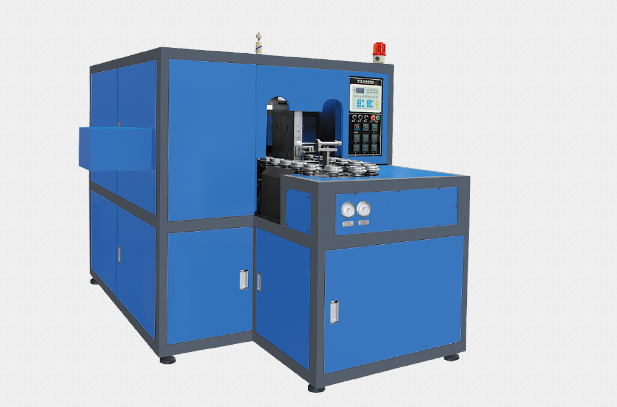

OSK-2LW/5LW, Manual feeding preform machines, special designed for wide mouth jar production. high efficiency and Low cost
Machine Specifiation:
|
Clamping System |
Number of cavitity |
cavities |
2 |
2 |
| Calmping unit |
kg |
20000 |
48000 |
|
| Mold stroke |
mm |
130 |
200 |
|
| Stretch stroke |
mm |
200 |
360 |
|
| Bottom stroke |
mm |
50 |
50 |
|
| Cavity pitch |
mm |
120 |
200 |
|
| Heating pitch |
mm |
120 |
75 |
|
| Number of holder |
pcs |
56 |
66 |
|
| Container |
Max.container volume |
ltr |
1.5 |
5 |
| Max. outer diameter |
mm |
90 |
110 |
|
| Max.prefrom height |
mm |
115 |
120 |
|
| Max.container diameter |
mm |
115 |
180 |
|
| Max.container height |
mm |
250 |
360 |
|
| Theoretical output |
B.P.H |
1200 |
1000 |
|
| Electrical System |
Heating oven |
units |
3*9 |
3*12 |
| Box*channel |
||||
| Number of lamp |
pcs |
27 |
36 |
|
| Heating power |
kw |
32.4 |
43.2 |
|
| Installed power |
kw |
35 |
4 |
|
| Voltage |
voltage |
220V/380V/3phase |
220V/380V/3phase |
|

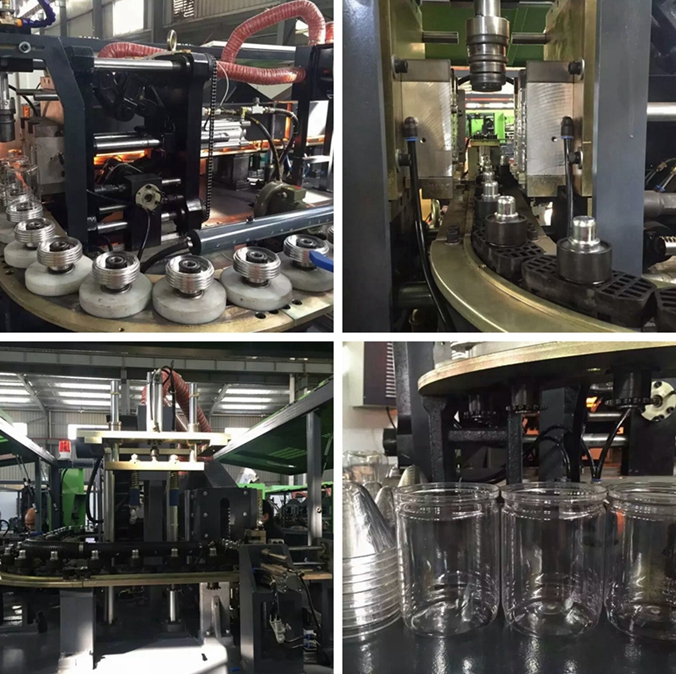

Machine Photos:
