PRODUCT DESCRIPTION

Machine Specification:

Screw diameter	mm	55	60	65
Screw L/D ratio	L/D	21.8	20	18.4
Shot weight	gram	538	641	752
Injection capacity	cm3	598	712	836
Injection pressure	Mpa	200	168	143
Theoretical injection rate	g/s	240	285	334
Plastic capacity	g/s	38	45	52
Injection stroke	mm	250
Screw torque	N.m	2530
Max screw rotate speed	r/min	190
Clamping force	ton	270
Opening stroke	mm	550
Space between tie bars	mm	570×570
Mould height	mm	220-600
Max daylight	mm	1150
Ejector force	ton	6.5
Ejector stroke	mm	150
Ejector quantity		9
Oil pump motor	kw	30
Pump pressure	Mpa	160
Heating power	kw	18.5
Machine size	M	6.3×1.6×2.15
Machine weight	ton	9
Oil tank capacity	L	560
International designation		2700-1200

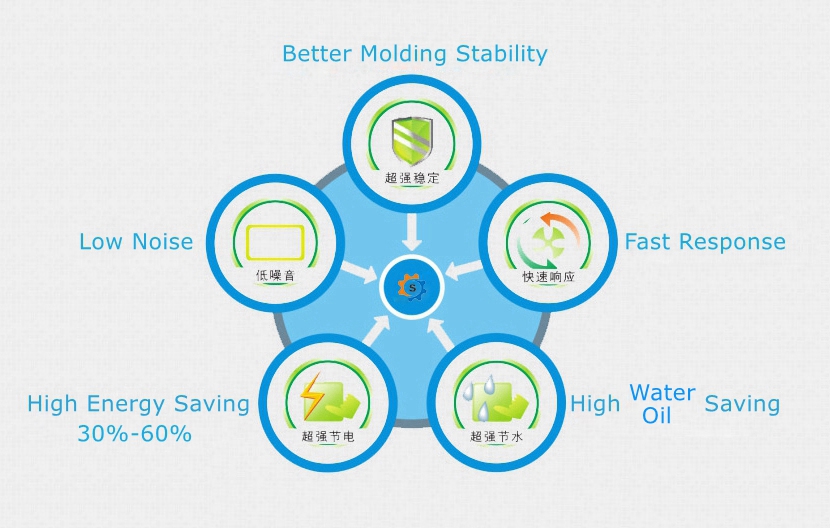

Machine Features:
