PRODUCT DESCRIPTION

Machine Specification:

Screw diameter	mm	65	70	75
Screw L/D ratio	L/D	21.5	20	18.7
Shot weight	gram	1030	1194	1371
Injection capacity	cm3	1132	1312	1506
Injection pressure	Mpa	182	157	137
Theoretical injection rate	g/s	245	285	327
Plastic capacity	g/s	50	60	71
Injection stroke	mm	340
Screw torque	N.m	3080
Max screw rotate speed	r/min	160
Clamping force	ton	330
Opening stroke	mm	660
Space between tie bars	mm	660*660
Mould height	mm	250-700
Max daylight	mm	1360
Ejector force	ton	10
Ejector stroke	mm	165
Ejector quantity		13
Oil pump motor	kw	37
Pump pressure	Mpa	16
Heating power	kw	22
Machine size	M	6.8×1.8×2.3
Machine weight	ton	12
Oil tank capacity	L	730
International designation		3300-2060

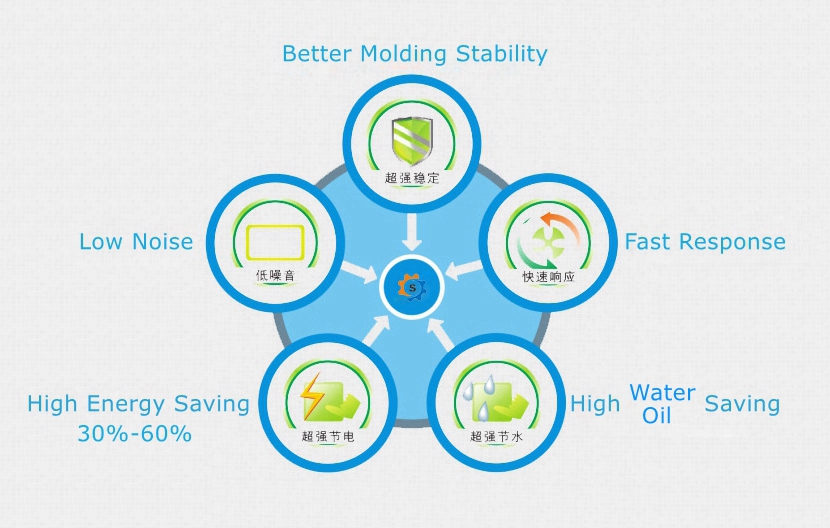

Machine Features:
