PRODUCT DESCRIPTION

Machine Specification:

Screw diameter	mm	70	75	80
Screw L/D ratio	L/D	21.4	20	18.8
Shot weight	gram	1176	1351	1537
Injection capacity	cm3	1293	1485	1689
Injection pressure	Mpa	199	173	152
Theoretical injection rate	g/s	366	395	446
Plastic capacity	g/s	60	65	70
Injection stroke	mm	335
Screw torque	N.m	4200
Max screw rotate speed	r/min	165
Clamping force	ton	400
Opening stroke	mm	700
Space between tie bars	mm	720×720
Mould height	mm	280-800
Max daylight	mm	1500
Ejector force	ton	12.6
Ejector stroke	mm	180
Ejector quantity		13
Oil pump motor	kw	37
Pump pressure	Mpa	160
Heating power	kw	25
Machine size	M	7.15×2.1×2.35
Machine weight	ton	16.7
Oil tank capacity	L	820
International designation		4000-2570

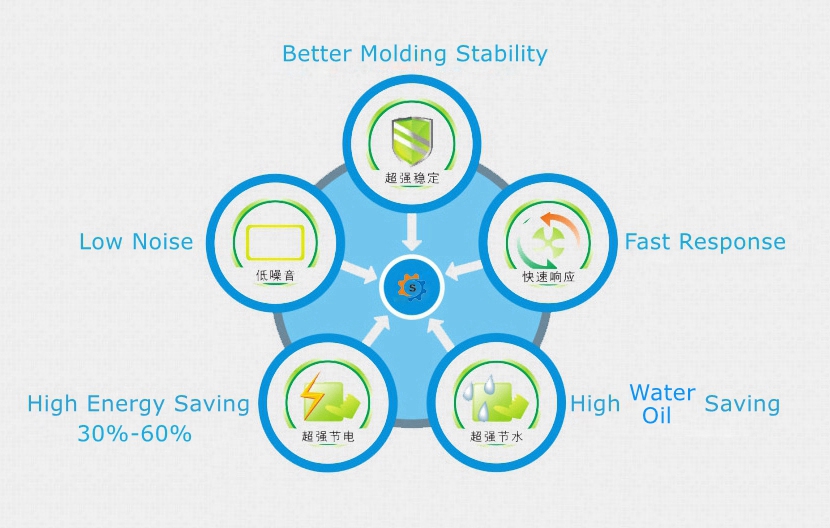

Machine Features:
