PRODUCT DESCRIPTION

Machine Specification:

Screw diameter	mm	85	90	95	100
Screw L/D ratio	L/D	22.3	21	19.9	18.9
Shot weight	gram	2091	2344	2611	2895
Injection capacity	cm3	2298	2576	2870	3181
Injection pressure	Mpa	206	184	164	149
Theoretical injection rate	g/s	400	448	499	553
Plastic capacity	g/s	60	75	80	100
Injection stroke	mm	405
Screw torque	N.m	6580
Max screw rotate speed	r/min	125
Clamping force	ton	650
Opening stroke	mm	870
Space between tie bars	mm	850×850
Mould height	mm	350~900
Max daylight	mm	1770
Ejector force	ton	20
Ejector stroke	mm	260
Ejector quantity		17
Oil pump motor	kw	55
Pump pressure	Mpa	16
Heating power	kw	37.15
Machine size	M	9.3*2.3*2.7
Machine weight	ton	32
Oil tank capacity	L	1200
International designation		6500-4710

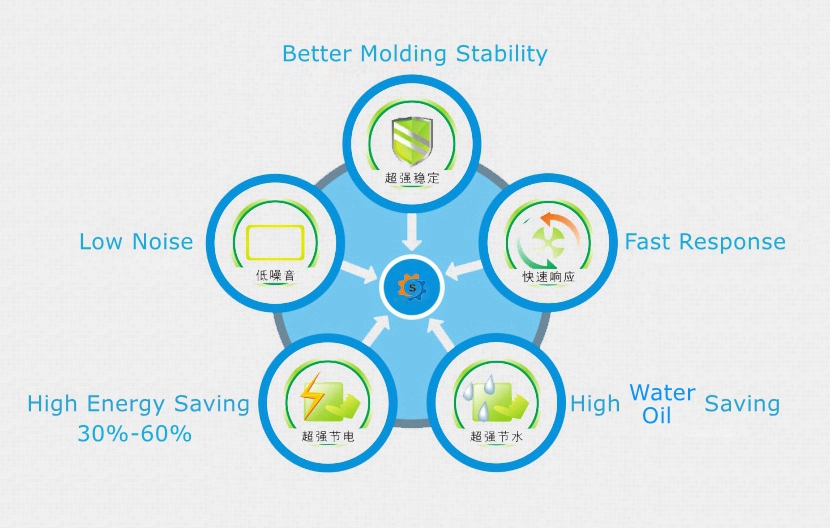

Machine Features:
