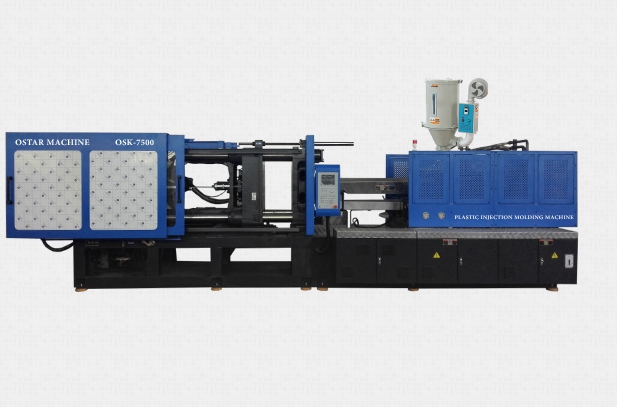

Product Details



PRODUCT DESCRIPTION



Machine Specification:

Screw diameter

mm

90

95

105

Screw L/D ratio

L/D

23.2

22

19.9

Shot weight

gram

2603

2901

3543

Injection capacity

cm3

2861

3188

3894

Injection pressure

Mpa

195

175

143

Theoretical injection rate

g/s

560

610

700

Plastic capacity

g/s

85

100

110

Injection stroke

mm

450

Screw torque

N.m

7180

Max screw rotate speed

r/min

130

Clamping force

ton

750

Opening stroke

mm

950

Space between tie bars

mm

950×950

Mould height

mm

400-960

Max daylight

mm

1910

Ejector force

ton

20

Ejector stroke

mm

280

Ejector quantity



17

Oil pump motor

kw

67

Pump pressure

Mpa

16

Heating power

kw

46.45

Machine size

M

10.1×2.6×2.8

Machine weight

ton

40

Oil tank capacity

L

1500

International designation



7500-5580



























Machine Features:

Clamping Unit:

New 5-point toggle device with advantage of stable movement and light impact force

High-quality mould platen with enough intensity to ensure no out of sharp under high pressure clamping

Hard chromed plated high tensile strength tie bars made of superior alloy with a good wear and corrosion resistance ability.

Wear-resistance guide for moving platen.

Clamping and ejector with precise transducer.

Differential high speed clamping.

Low pressure mould protection function.

Hydraulic mould height adjustment drived by gear with rough and precise.

Mechanical and electrical dual safety interlock.

Automatic centralized lubrication system with far pressure detector.



Injection Unit:

Nitrided screw and barrel with long service life.

Smelted screw with big L/D ratio to result of high quality plasticizing and color-fixing.

Double injection cylinder device featured compact construction and good equilibrant.

Transducer control injection stroke.

Low speed and large torque hydraulic motor can be freely adjusted.

Movable hopper for easily material remove.

Injection carriage can generally used with the function of slacking, re-feeding or fixed feeding.

Multi steps speed and pressure of injecting and holding are controlled by time or position or both.

Equipped with reverse device to be easily removed and cleaned.



Hydraulic Unit:

Proportional pressure and flow control with the advantage of smooth adjustment and high precision.

Special designed valve plate, more compact, reasonable and fast respond.

Imported world famous hydraulic valves, sealing rings, hydraulic hose and fittings.

Low noise hydraulic system.

Precise oil filter.

Oil cooling device



Controller Unit:

Imported machine controller, precise control each machine motion. Easily operation with multiple language.

Imported electrical components.

Closed-up PID temperature control with high precision.

Deviation preset between high and low temperature, and break control for temperature sensor.

Alarm system to avoid machine cold start or lack of material in hopper

Transducer control injection and opening stroke.

99 steps speed control for increasing and reduce to suit for different production technology

Self-diagnostic and trouble alarm function.

Parameter lock function to avoid wrong setting.

100sets of production parameter memory storage inside.

Record the quantity of products and automatically stop if up to required quantity.

Emergency stop device
