PRODUCT DESCRIPTION

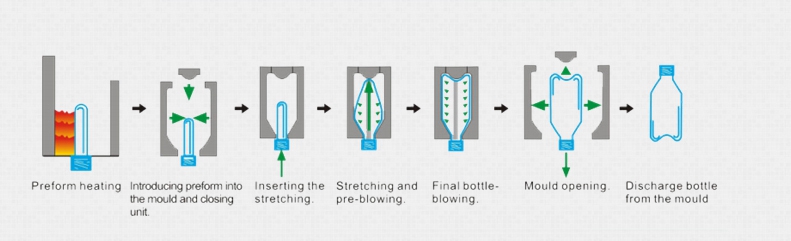

PET Bottle Production Flow:

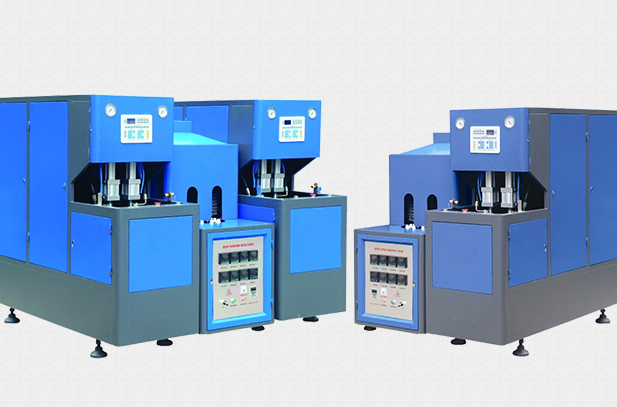

Machine
Brief:
OSK semi-automatic stretch blow moulding machine with microcomputer controlling system, it controls various technical parameter
needed more accurately and more steadily. Only one person without special training operates it more easily and more safely.
Machines fit to blow
carbonated beverage bottles, mineral water bottles, cosmetics bottles and
hot-filling bottles.
Machine Specification:
| Max. product volume(L/cav) |
2 |
6 |
20 |
| Max. preform neck size(mm) |
100 |
150 |
200 |
| Max. product diameter(mm) |
180 |
200 |
400 |
| Max. product height (mm) |
300 |
400 |
600 |
| Cavities |
2 |
1 |
1 |
| Die force (KN) |
100 |
120 |
150 |
| Die stroke (mm) |
270 |
320 |
340 |
| Max. mould size（mm） |
390*345 |
390*350 |
420*500 |
| Mould thickness |
Adjustable |
Mould thickness |
Adjustable |
| Mould spacing（mm |
Adjustable |
Adjustable |
400 |
| Max. pulling stroke（mm） |
400 |
500 |
500 |
| Operation pressure(Mpa) |
0.8-1.0 |
0.8-1.0 |
0.8-1.0 |
| Air consumption (1tr/min) |
200 |
350 |
560 |
| Blow pressure(Mpa) |
1.2-2.8 |
1.2-2.8 |
1.2-2.8 |
| Air consumption (1tr/min) |
300 |
300 |
650 |
| Output（pcs/h |
1000-1800 |
1000-1600 |
600-900 |
| Machine size（LxWxH）(m) |
1.46*0.58*1.8 |
1.56*0.7*1.9 |
2.18*0.77*1.96 |
| Machine weight(KG) |
650 |
700 |
1000 |
| Temperature grade（rate) |
8 |
8 |
8 |
| Heating time（S) |
90-200 |
90-200 |
90-200 |
| Voltage（V) |
380V/220V |
380V/220V |
380V/220V |
| Frequency（HZ) |
50/60 |
50/60 |
50/60 |
| Total power（KW) |
16 |
16 |
15-40 |
| Oven Size （LxWxH) |
1.35*0.55*1.15 |
1.45*0.65*1.15 |
2.37*0.68*1.65 |
| Oven weight (KG) |
300 |
330 |
380 |
