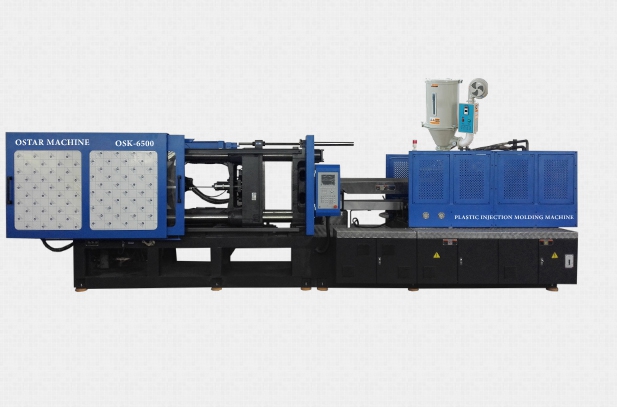

PRODUCT DESCRIPTION

Machine Specification:

Screw diameter	mm	85	90	95	100
Screw L/D ratio	L/D	22.3	21	19.9	18.9
Shot weight	gram	2091	2344	2611	2895
Injection capacity	cm3	2298	2576	2870	3181
Injection pressure	Mpa	206	184	164	149
Theoretical injection rate	g/s	400	448	499	553
Plastic capacity	g/s	60	75	80	100
Injection stroke	mm	405
Screw torque	N.m	6580
Max screw rotate speed	r/min	125
Clamping force	ton	650
Opening stroke	mm	870
Space between tie bars	mm	850×850
Mould height	mm	350~900
Max daylight	mm	1770
Ejector force	ton	20
Ejector stroke	mm	260
Ejector quantity		17
Oil pump motor	kw	55
Pump pressure	Mpa	16
Heating power	kw	37.15
Machine size	M	9.3*2.3*2.7
Machine weight	ton	32
Oil tank capacity	L	1200
International designation		6500-4710





















































Machine Features:

Clamping Unit:

New 5-point toggle device with advantage of stable movement and light impact force

High-quality mould platen with enough intensity to ensure no out of sharp under high pressure clamping

Hard chromed plated high tensile strength tie bars made of superior alloy with a good wear and corrosion resistance ability.

Wear-resistance guide for moving platen.

Clamping and ejector with precise transducer.

Differential high speed clamping.

Low pressure mould protection function.

Hydraulic mould height adjustment drived by gear with rough and precise.

Mechanical and electrical dual safety interlock.

Automatic centralized lubrication system with far pressure detector.



Injection Unit:

Nitrided screw and barrel with long service life.

Smelted screw with big L/D ratio to result of high quality plasticizing and color-fixing.

Double injection cylinder device featured compact construction and good equilibrant.

Transducer control injection stroke.

Low speed and large torque hydraulic motor can be freely adjusted.

Movable hopper for easily material remove.

Injection carriage can generally used with the function of slacking, re-feeding or fixed feeding.

Multi steps speed and pressure of injecting and holding are controlled by time or position or both.

Equipped with reverse device to be easily removed and cleaned.



Hydraulic Unit:

Proportional pressure and flow control with the advantage of smooth adjustment and high precision.

Special designed valve plate, more compact, reasonable and fast respond.

Imported world famous hydraulic valves, sealing rings, hydraulic hose and fittings.

Low noise hydraulic system.

Precise oil filter.

Oil cooling device



Controller Unit:

Imported machine controller, precise control each machine motion. Easily operation with multiple language.

Imported electrical components.

Closed-up PID temperature control with high precision.

Deviation preset between high and low temperature, and break control for temperature sensor.

Alarm system to avoid machine cold start or lack of material in hopper

Transducer control injection and opening stroke.

99 steps speed control for increasing and reduce to suit for different production technology

Self-diagnostic and trouble alarm function.

Parameter lock function to avoid wrong setting.

100sets of production parameter memory storage inside.

Record the quantity of products and automatically stop if up to required quantity.

Emergency stop device
