PRODUCT DESCRIPTION

Machine Specification:

Screw diameter	mm	45	50	55
Screw L/D ratio	L/D	23.3	21	19.1
Shot weight	gram	326	402	486
Injection capacity	cm3	358	442	534
Injection pressure	Mpa	219	178	147
Theoretical injection rate	g/s	142	175	212
Plastic capacity	g/s	20.1	26.5	34.2
Injection stroke	mm	225
Screw torque	N.m	1250
Max screw rotate speed	r/min	225
Clamping force	ton	160
Opening stroke	mm	460
Space between tie bars	mm	480×480
Mould height	mm	180~500
Max daylight	mm	960
Ejector force	ton	4.52
Ejector stroke	mm	115
Ejector quantity		5
Oil pump motor	kw	15
Pump pressure	Mpa	16
Heating power	kw	13.6
Machine size	M	5.3*1.35*1.89
Machine weight	ton	5.6
Oil tank capacity	L	420
International designation		1600-785

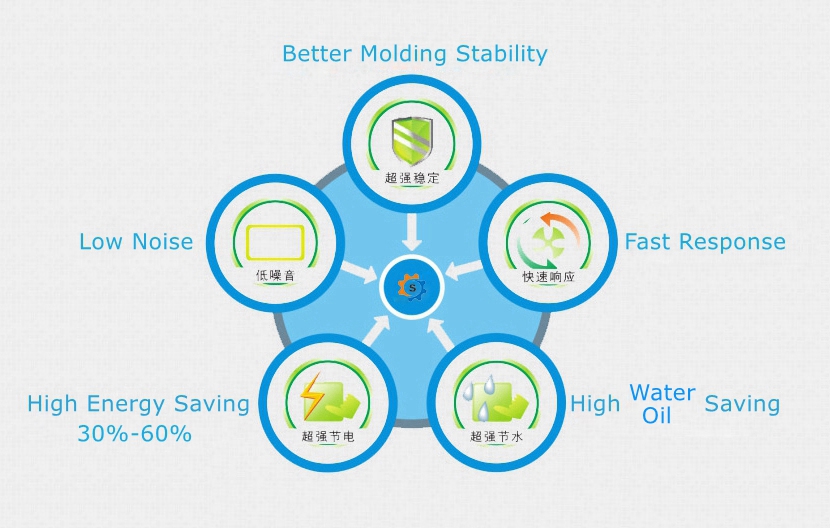

Machine Features:
