PRODUCT DESCRIPTION

Machine Specification:

Screw diameter	mm	55	60	65
Screw L/D ratio	L/D	22.9	21	19.4
Shot weight	gram	605	720	845
Injection capacity	cm3	665	791	929
Injection pressure	Mpa	210	176	150
Theoretical injection rate	g/s	176.5	210	245
Plastic capacity	g/s	26.4	32.5	40
Injection stroke	mm	280
Screw torque	N.m	2000
Max screw rotate speed	r/min	150
Clamping force	ton	240
Opening stroke	mm	530
Space between tie bars	mm	555×555
Mould height	mm	200~570
Max daylight	mm	1100
Ejector force	ton	6.15
Ejector stroke	mm	135
Ejector quantity		9
Oil pump motor	kw	22
Pump pressure	Mpa	16
Heating power	kw	18.5
Machine size	M	6.2*1.6*2.1
Machine weight	ton	8.0
Oil tank capacity	L	440
International designation		2400-1390

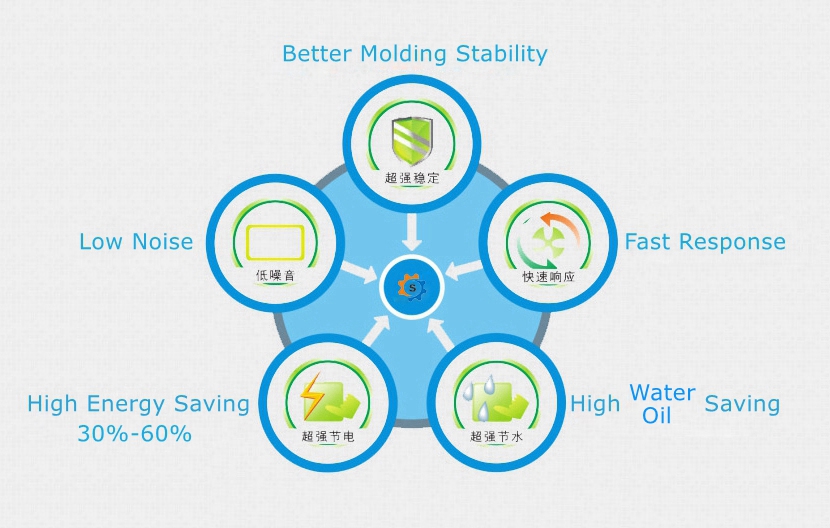

Machine Feature:
