PRODUCT DESCRIPTION

Machine Specification:

Screw diameter	mm	80	85	90
Screw L/D ratio	L/D	22.3	21	19.8
Shot weight	gram	1948	2200	2466
Injection capacity	cm3	2141	2418	2710
Injection pressure	Mpa	188	167	149
Theoretical injection rate	g/s	427	482	541
Plastic capacity	g/s	80	100	118
Injection stroke	mm	425
Screw torque	N.m	5170
Max screw rotate speed	r/min	150
Clamping force	ton	550
Opening stroke	mm	820
Space between tie bars	mm	810×810
Mould height	mm	350~820
Max daylight	mm	1640
Ejector force	ton	15
Ejector stroke	mm	210
Ejector quantity		13
Oil pump motor	kw	55
Pump pressure	Mpa	16
Heating power	kw	33
Machine size	M	8.4*2.2*2.6
Machine weight	ton	23.5
Oil tank capacity	L	1000
International designation		5500-4040

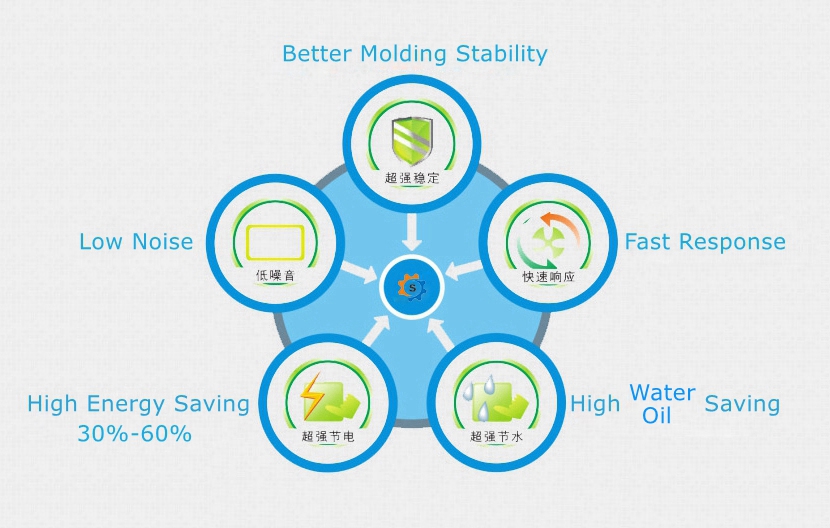

Machine Features:
