PRODUCT DESCRIPTION

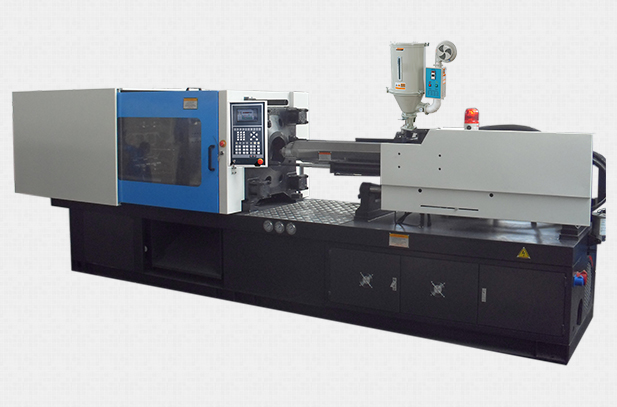

PVC Fitting Injection Molding Machine Features:
1).Larger injection weight and two stage continuous
injection mode for heavy PVC fitting production
2).Special designed Bi-metal screw alloy
screw&barrel for U-PVC/C-PVC, achieving stabilized plasticizing and
production.
3).Ceramic heater and air cooling fans on
barrel, for fast reaction time and precise temperature control.
4).Wider moving safety door at both back and
front, to accommodate bulky core pulling cylinders.
5).Machine with multi sets core pulling
controller.
6).Auto lubrication pump and auto mold
thickness adjustment.
PVC Fitting Injection Molding Machine Specification:
Screw diameter mm 45 50 55 Screw L/D ratio L/D 23.3 21 19.1 Shot weight gram 326 402 486 Injection capacity cm3 358 442 534 Injection pressure Mpa 219 178 147 Theoretical injection rate g/s 142 175 212 Plastic capacity g/s 20.1 26.5 34.2 Injection stroke mm 225 Screw torque N.m 1250 Max screw rotate speed r/min 225 Clamping force ton 160 Opening stroke mm 460 Space between tie bars mm 480×480 Mould height mm 180~500 Max daylight mm 960 Ejector force ton 4.52 Ejector stroke mm 115 Ejector quantity 5 Oil pump motor kw 15 Pump pressure Mpa 16 Heating power kw 13.6 Machine size M 5.3*1.35*1.89 Machine weight ton 5.6 Oil tank capacity L 420 International designation 1600-785

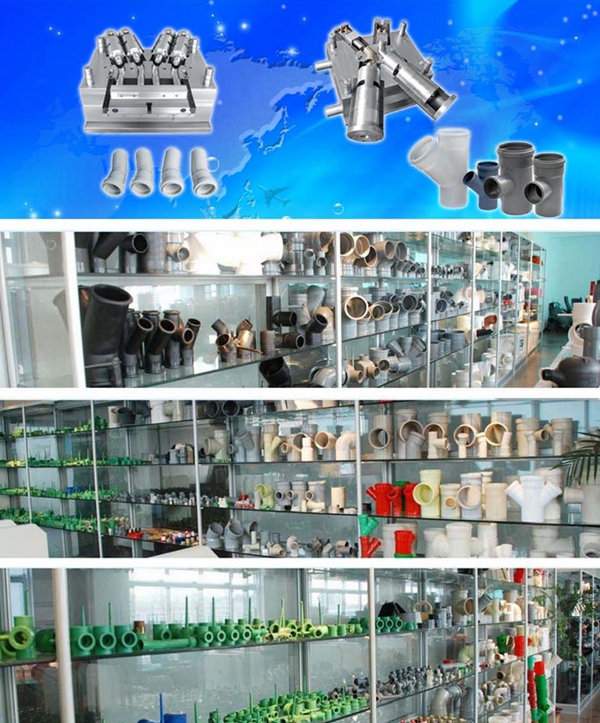

PVC Fitting Sample Show:
