PRODUCT DESCRIPTION

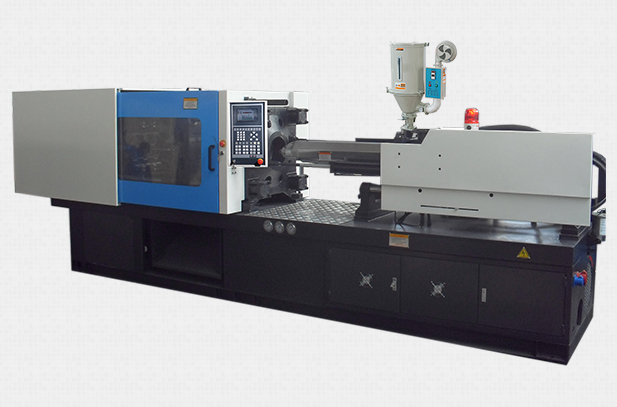

PVC Fitting Injection Molding Machine:
1).Larger injection weight and two stage continuous
injection mode for heavy PVC fitting production
2).Special designed Bi-metal screw alloy
screw&barrel for U-PVC/C-PVC, achieving stabilized plasticizing and
production.
3).Ceramic heater and air cooling fans on
barrel, for fast reaction time and precise temperature control.
4).Wider moving safety door at both back and
front, to accommodate bulky core pulling cylinders.
5).Machine with multi sets core pulling
controller.
6).Auto lubrication pump and auto mold
thickness adjustment.
PVC Fitting Injection Molding Machine:
Screw diameter mm 60 65 70 Screw L/D ratio L/D 22.7 21 19.5 Shot weight gram 772 905 1050 Injection capacity cm3 848 995 1154 Injection pressure Mpa 207 176 152 Theoretical injection rate g/s 241 281 328 Plastic capacity g/s 35.2 43.3 51.8 Injection stroke mm 300 Screw torque N.m 2530 Max screw rotate speed r/min 150 Clamping force ton 300 Opening stroke mm 590 Space between tie bars mm 610×610 Mould height mm 220~630 Max daylight mm 1220 Ejector force ton 7.06 Ejector stroke mm 150 Ejector quantity 9 Oil pump motor kw 30 Pump pressure Mpa 16 Heating power kw 22 Machine size M 6.2*1.6*2.1 Machine weight ton 11 Oil tank capacity L 560 International designation 3000-1750

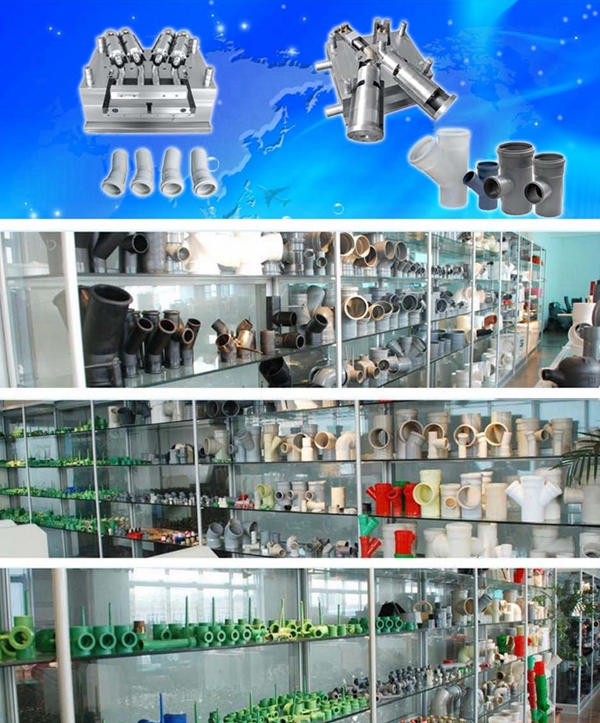

PVC Fitting Sample Show:
