PRODUCT DESCRIPTION

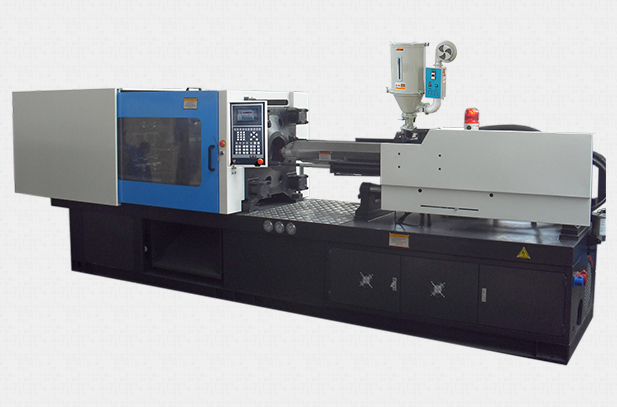

PVC Fitting Injection Molding Machine Features:
1).Larger injection weight and two stage continuous
injection mode for heavy PVC fitting production
2).Special designed Bi-metal screw alloy
screw&barrel for U-PVC/C-PVC, achieving stabilized plasticizing and
production.
3).Ceramic heater and air cooling fans on
barrel, for fast reaction time and precise temperature control.
4).Wider moving safety door at both back and
front, to accommodate bulky core pulling cylinders.
5).Machine with multi sets core pulling
controller.
6).Auto lubrication pump and auto mold
thickness adjustment.
PVC Fitting Injection Molding Machine Specification:
Screw diameter mm 70 75 80 Screw L/D ratio L/D 22.6 21 19.7 Shot weight gram 1225 1406 1600 Injection capacity cm3 1346 1545 1758 Injection pressure Mpa 201 175 154 Theoretical injection rate g/s 370 423 484 Plastic capacity g/s 60.4 71.4 83.7 Injection stroke mm 350 Screw torque N.m 3490 Max screw rotate speed r/min 150 Clamping force ton 480 Opening stroke mm 770 Space between tie bars mm 760×760 Mould height mm 280~790 Max daylight mm 1560 Ejector force ton 11.34 Ejector stroke mm 195 Ejector quantity 13 Oil pump motor kw 45 Pump pressure Mpa 16 Heating power kw 28 Machine size M 7.5*2.1*2.45 Machine weight ton 20 Oil tank capacity L 850 International designation 4800-2710

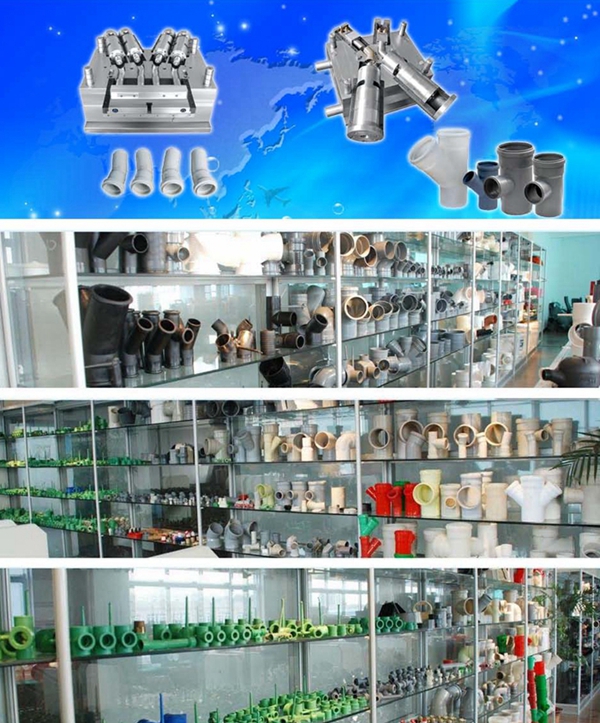

PVC Fitting Samples Show:
