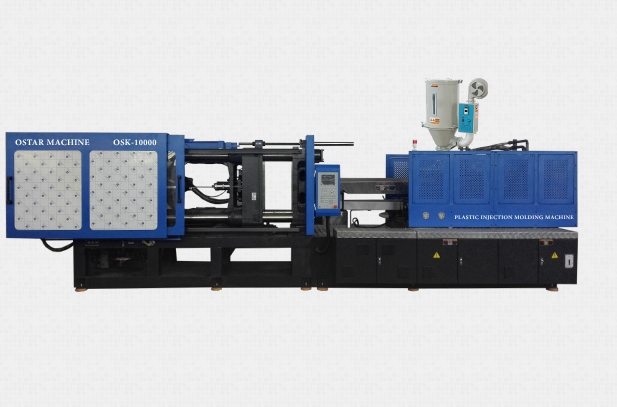

PRODUCT DESCRIPTION
Machine Specification:
Screw diameter mm 100 110 120 130 Screw L/D ratio L/D 24.5 22 20.2 18.6 Shot weight gram 3715 4496 5350 62 Injection capacity cm3 4083 4941 5880 6901 Injection pressure Mpa 206 171 143 122 Theoretical injection rate g/s 695 841 1001 1175 Plastic capacity g/s 96 116 130 148 Injection stroke mm 520 Screw torque N.m 8690 Max screw rotate speed r/min 110 Clamping force ton 1000 Opening stroke mm 1160 Space between tie bars mm 1110×1110 Mould height mm 450-1200 Max daylight mm 2360 Ejector force ton 24.5 Ejector stroke mm 350 Ejector quantity 21 Oil pump motor kw 90 Pump pressure Mpa 16 Heating power kw 68.45 Machine size M 12.38×2.8×3.5 Machine weight ton 60 Oil tank capacity L 1700 International designation 10000-8410
Machine Introduction:
Clamping
Unit:
New 5-point toggle device with advantage of
stable movement and light impact force
High-quality mould platen with enough
intensity to ensure no out of sharp under high pressure clamping
Hard chromed plated high tensile strength
tie bars made of superior alloy with a good wear and corrosion resistance
ability.
Wear-resistance guide for moving platen.
Clamping and ejector with precise
transducer.
Differential high speed clamping.
Low pressure mould protection function.
Hydraulic mould height adjustment drived by
gear with rough and precise.
Mechanical and electrical dual safety
interlock.
Automatic centralized lubrication system
with far pressure detector.
Injection
Unit:
Nitrided screw and barrel with long service
life.
Smelted screw with big L/D ratio to result
of high quality plasticizing and color-fixing.
Double injection cylinder device featured
compact construction and good equilibrant.
Transducer control injection stroke.
Low speed and large torque hydraulic motor
can be freely adjusted.
Movable hopper for easily material remove.
Injection carriage can generally used with
the function of slacking, re-feeding or fixed feeding.
Multi steps speed and pressure of injecting
and holding are controlled by time or position or both.
Equipped with reverse device to be easily
removed and cleaned.
Hydraulic
Unit:
Proportional pressure and flow control with
the advantage of smooth adjustment and high precision.
Special designed valve plate, more compact,
reasonable and fast respond.
Imported world famous hydraulic valves,
sealing rings, hydraulic hose and fittings.
Low noise hydraulic system.
Precise oil filter.
Oil cooling device
Controller
Unit:
Imported machine controller, precise
control each machine motion. Easily operation with multiple language.
Imported electrical components.
Closed-up PID temperature control with high
precision.
Deviation preset between high and low
temperature, and break control for temperature sensor.
Alarm system to avoid machine cold start or
lack of material in hopper
Transducer control injection and opening
stroke.
99 steps speed control for increasing and
reduce to suit for different production technology
Self-diagnostic and trouble alarm function.
Parameter lock function to avoid wrong
setting.
100sets of production parameter memory
storage inside.
Record the quantity of products and
automatically stop if up to required quantity.
Emergency stop device
