PRODUCT DESCRIPTION

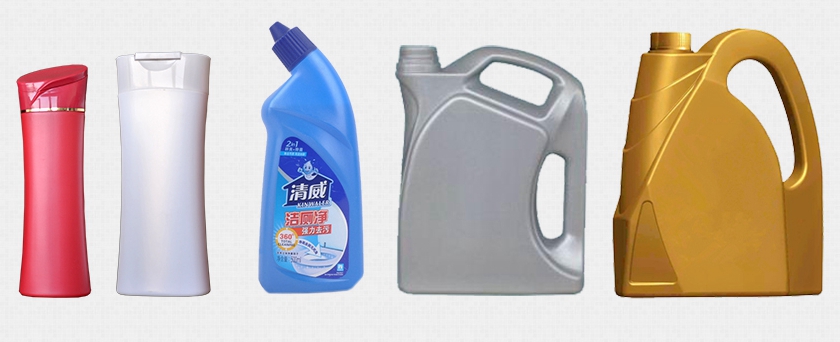

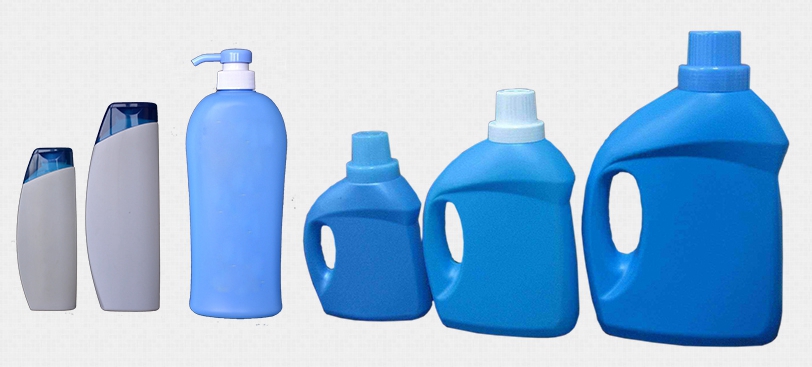

Products Sample Show:
Double Station Series Extrusion Blow Molding Machine, multi die heads choosable.
OST60-2LD, for bottle 5ml to 2L
OST65-5LD, for bottle up to 5L
OST80-12LD, for bottle up to 12L
OST90-20LD, for bottle up to 20L
More special design model machine according to customer request.
Machine Feature:
Easily operation by PLC+touch screen.
Automatic malfunction alarm with self-diagnosis.
Imported hydraulic component.
Hard gear box and imported inverter.
Two board type axis stem lock mode structure
Offer two layers, three layers and visual stripe.
Equiped with deflashing function.
Parison programmer can be adopt.
Machine Specification:
| Machin Model |
|
OST60-2LD |
OST65-5LD |
OST80-12LD |
OST90-20LD |
| Material |
|
PE, PP… |
PP, PE… |
PE, PP… |
PE, PP… |
| Max container capacity |
Liter |
2 |
5 |
12 |
20 |
| Number of die |
set |
1.2.3.4 |
1.2.3.4 |
1.2.3.4 |
1.2.3.4 |
| Output (dry Cycle) |
pc/hr |
1000*2 |
1000*2 |
900*2 |
500*2 |
| Machine Dimension（L×W×H） |
M |
2.8*2.2*2.5 |
3.4*2.4*2.5 |
4.7*3.2*2.9 |
4.7*3.7*3.1 |
| Total weigh |
Ton |
5.2 |
5.8 |
11 |
15.4 |
| Clamping force |
KN |
60 |
70 |
120 |
150 |
| Platen opening stroke |
mm |
130-370 |
165-525 |
280-660 |
410-820 |
| Platen size |
mm |
300*335 |
325*380 |
520*540 |
550*600 |
| Move mould stroke |
mm |
390 |
420 |
620 |
720 |
| Mould thickness |
mm |
135 |
170 |
285 |
560 |
| Power of oil pump motor |
KW |
5.5 |
7.5 |
15 |
18.5 |
| Max pressure |
Mpa |
10 |
10 |
10 |
12 |
| Air pressure |
Mpa |
0.6 |
0.6 |
0.8 |
0.8 |
| Air consumption |
m³/min |
0.4 |
0.6 |
0.8 |
0.8 |
| Average energy consumption |
KW |
12 |
16 |
42 |
48 |
| Screw diameter |
mm |
60 |
65 |
80 |
90 |
| Screw L/D ratio |
L/D |
25 |
25 |
25 |
25 |
| Plasticizing capacity |
Kg/hr |
60 |
60 |
100 |
130 |
| Number of heating zone |
zone |
3 |
3 |
4 |
4 |
| Extruder heating power |
KW |
10.8 |
13.8 |
16 |
17 |
| Extruder driving power |
KW |
15 |
15 |
30 |
37 |
| Number of heating zone |
zone |
3 |
3 |
3 |
4 |
| Power of die heating |
KW |
4.2 |
5.7 |
8.7 |
9.5 |
| Max die-pin diameter |
mm |
90 |
135 |
165 |
215 |
| Center distance of double die |
mm |
120/130 |
150/160 |
120/130 |
4 |
| Center distance of tri-die |
mm |
85/90 |
110/120 |
85/90 |
--- |
| Center distance of tetra-die |
mm |
80 |
80 |
80 |
--- |

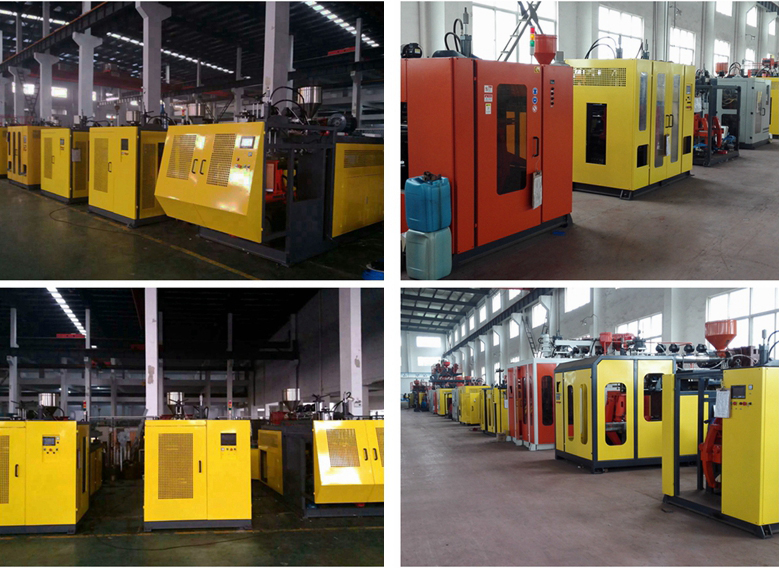

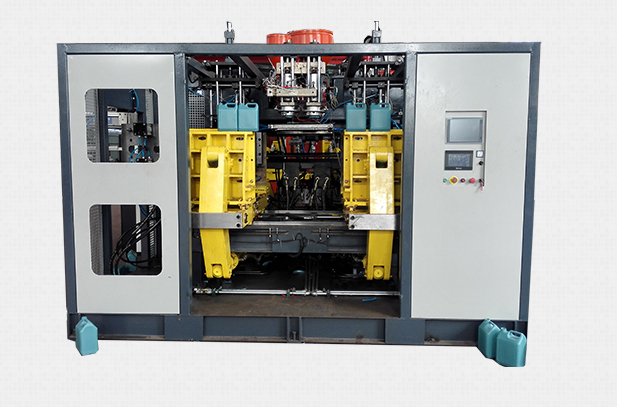

Machine Photos:
