PRODUCT DESCRIPTION

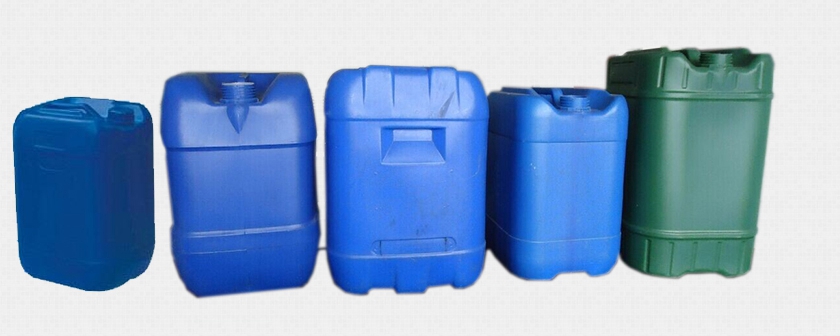

Machine Sample Shows:
Machine Brief:
OST80-30L and OST100-30LD, single station and double station extrusion blow molding machine. Machine special designed for oil gallon tank, suitable for 20L-30L plastic drum production.
Machine Feature:
Easily
operation by PLC+touch screen.
Automatic
malfunction alarm with self-diagnosis.
Imported
hydraulic component.
Hard
gear box and imported inverter.
Two
board type axis stem lock mode structure
Offer
two layers, three layers and visual stripe.
Equiped
with deflashing function.
Parison
programmer can be adopt.
Machine
Specification:
Model OST80-30L OST100-30LD Material PE, PP PE, PP Max container capacity Liter 30 30 Number of die set 1. 1. Output (dry Cycle) pc/hr 400 400*2 Machine Dimension（L×W×H） M 4.5*2.5*3.0 4.9*4.0*3.2 Total weigh ton 12 18.3 Clamping Unit Clamping force KN 120 180 Platen opening stroke mm 460-960 460-960 Platen size mm 605*650 605*650 Move mould stroke mm 750 750 Mould thickness mm 470 470 Power Power of oil pump motor KW 15 15 Max pressure Mpa 12 12 Air pressure Mpa 1.0 1.0 Air consumption m³/min 1.0 1.0 Average energy consumption KW 42 89 Extruder unit Screw diameter mm 80 100 Screw L/D ratio L/D 25 28 Plasticizing capacity Kg/hr 100 210 Number of heating zone zone 4 5 Extruder heating power KW 21 21 Extruder driving power KW 30 37 Die Number of heating zone zone 5 5 Power of die heating KW 10 10 Max die-pin diameter mm 225 225 Center distance of double die mm - - Center distance of tri-die mm - - Center distance of tetra-die mm - -

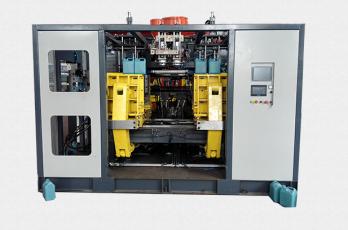

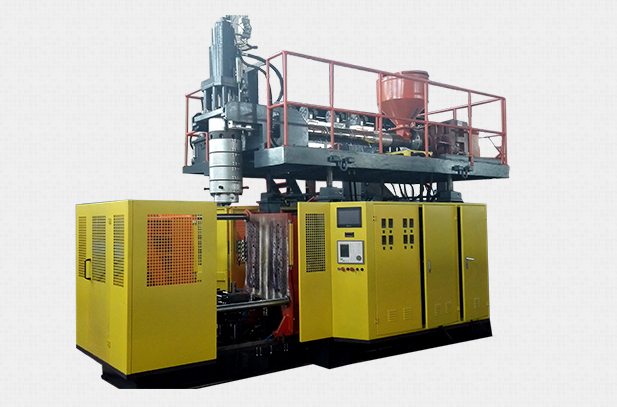

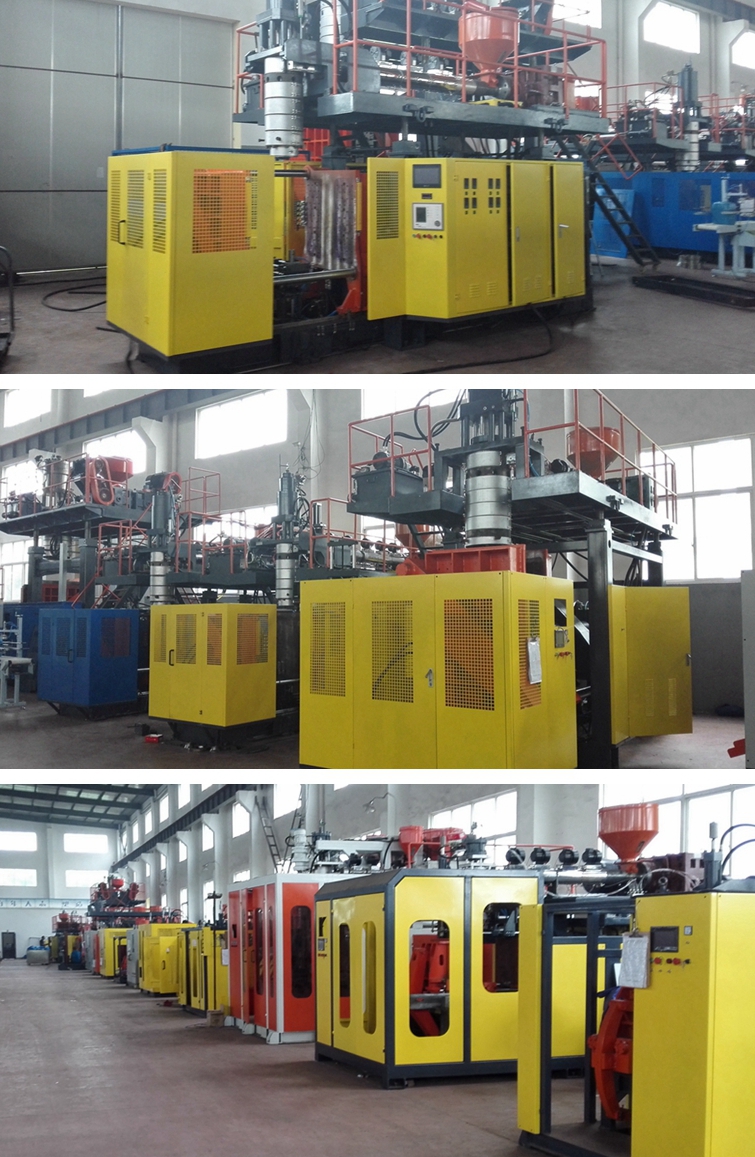

Machine Photos:
