PRODUCT DESCRIPTION
Products Brief:

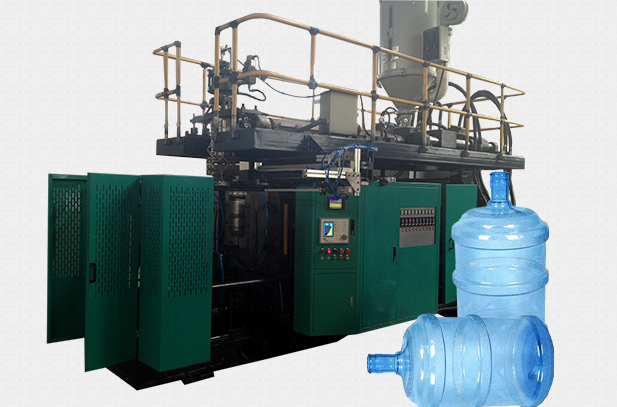

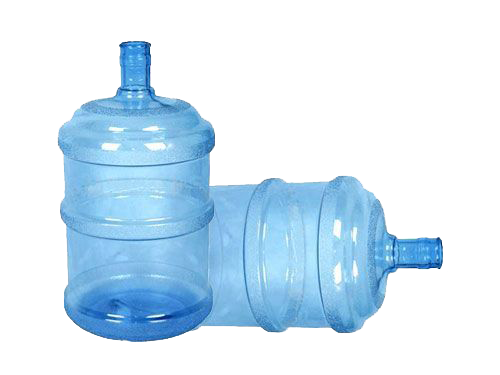

Automatic Extrusion Blow Moulding Machine, Specially for 3gallon and 5gallon PC bottle Production
Specifications |
||
Material |
|
PC |
Max container capacity |
|
30 |
Number of die |
Set |
1 |
Output(dry Cycle) |
pc/hr |
650 |
Machine Dimension（L×W×H） |
M |
5.0*2.4*3.8 |
Total weigh |
ton |
11.8 |
Clamping Unit |
||
Clamping force |
KN |
220 |
Platen opening stroke |
mm |
400-900 |
Platen size |
mm |
760*660 |
Mould thickness |
mm |
410 |
Power |
||
power of oil pump motor |
KW |
45 |
max pressure |
Mpa |
10 |
Air pressure |
Mpa |
1 |
Air consumption |
m³/min |
0.4 |
Average energy consumption |
KW |
12 |
Extruder unit |
||
Screw diameter |
mm |
82 |
Screw L/D ratio |
L/D |
25/28 |
Plasticizing capacity |
Kg/hr |
150 |
Number of heating zone |
zone |
6 |
Extruder heating power |
KW |
16 |
Extruder driving power |
KW |
6 |
Die |
||
Number of heating zone |
Zone |
4 |
Power of die heating |
KW |
4.5 |
Max die-pin diameter |
mm |
150 |

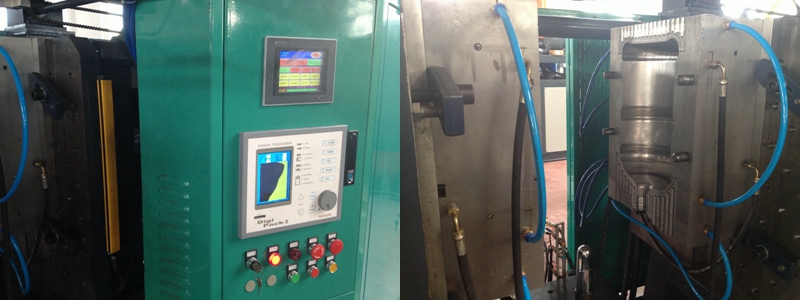

| MICROCOMPUTER CONTROL SYSTEM | JAPAN MITSUBISHI PLC |
| TOUCH SCREEN | TAIWAN HITECH TOUCH SCREEN |
| TEMPERATURE MODULE | TAIWAN 7018RP |
| PROXIMITY SWITCH | TAIWAN RIKO |
| CONTACTOR | FRANCE SCHNEIDER |
| AIRBREAK SWITCH | FRANCE SCHNEIDER |
| MOTOR | SIEMENS BEIDE THREE MOTOR |
| INVERTER | TAIWAN DELTA |
| OIL PUMP | TAIWAN HIGHTECH |
| HYDRAULIC VALVE | TAIWAN NORTHMAN |
| PNEUMATIC VALVE | TAIWAN AIRTAC |
| PARISON PROGRAMMER | JAPAN MOOG 100 POINTS |
| SERVO VALVE | JAPAN MOOG |
