PRODUCT DESCRIPTION

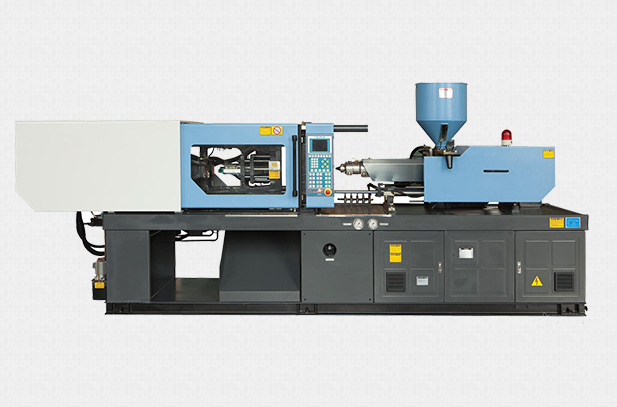

PET Preform Injection Molding Machine Features:
1) Big L/D ratio screw, special design for PET resin plasticing and injection.
2) Large hydraulic motor, for high speed preform production.
3) Muliti water manifolds for preform mold cooling sufficiently.
4) big injection weight, for high capacity production
5) Enlarge ejector force and stroke, to make preform eject out easily.
6) A-Z solution for bottle&cap production line.
PET Preform Injection Molding Machine Specifiction:
Screw diameter mm 45 50 55 Screw L/D ratio L/D 23.3 21 19.1 Shot weight gram 326 402 486 Injection capacity cm3 358 442 534 Injection pressure Mpa 219 178 147 Theoretical injection rate g/s 142 175 212 Plastic capacity g/s 20.1 26.5 34.2 Injection stroke mm 225 Screw torque N.m 1250 Max screw rotate speed r/min 225 Clamping force ton 160 Opening stroke mm 460 Space between tie bars mm 480×480 Mould height mm 180~500 Max daylight mm 960 Ejector force ton 4.52 Ejector stroke mm 115 Ejector quantity 5 Oil pump motor kw 15 Pump pressure Mpa 16 Heating power kw 13.6 Machine size M 5.3*1.35*1.89 Machine weight ton 5.6 Oil tank capacity L 420 International designation 1600-785
