PRODUCT DESCRIPTION

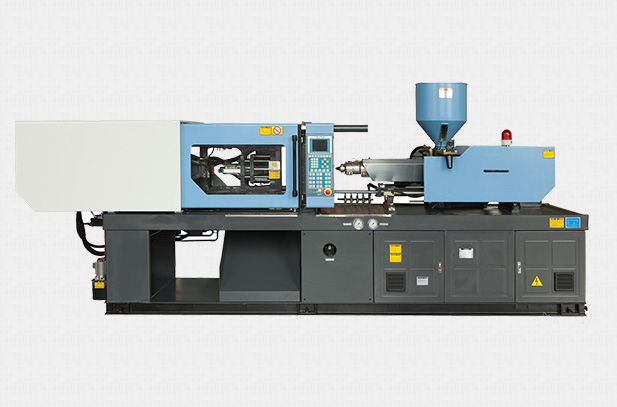

PET Preform Injection Molding Machine
Features:
1) Big L/D ratio screw, special design for PET resin plasticing
and injection.
2) Large hydraulic motor, for high speed preform production.
3) Muliti water manifolds for preform mold
cooling sufficiently.
4) big injection weight, for high capacity production
5) Enlarge ejector force and stroke, to make preform eject out
easily.
6) A-Z solution for bottle&cap production line.
PET Preform Injection Molding Machine Specifiction:
Screw diameter mm 70 75 80 Screw L/D ratio L/D 22.6 21 19.7 Shot weight gram 1225 1406 1600 Injection capacity cm3 1346 1545 1758 Injection pressure Mpa 201 175 154 Theoretical injection rate g/s 370 423 484 Plastic capacity g/s 60.4 71.4 83.7 Injection stroke mm 350 Screw torque N.m 3490 Max screw rotate speed r/min 150 Clamping force ton 480 Opening stroke mm 770 Space between tie bars mm 760×760 Mould height mm 280~790 Max daylight mm 1560 Ejector force ton 11.34 Ejector stroke mm 195 Ejector quantity 13 Oil pump motor kw 45 Pump pressure Mpa 16 Heating power kw 28 Machine size M 7.5*2.1*2.45 Machine weight ton 20 Oil tank capacity L 850 International designation 4800-2710
