PRODUCT DESCRIPTION

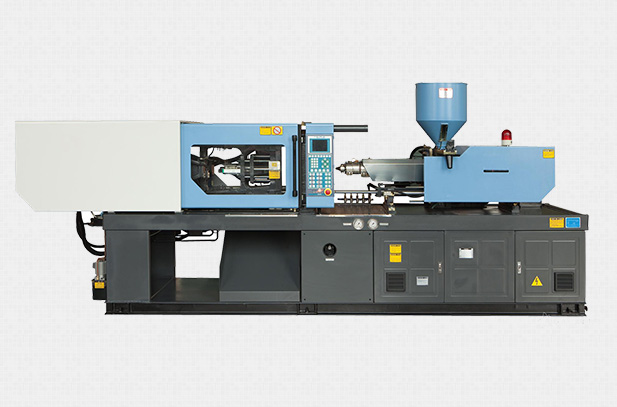

PET Preform Injection Molding Machine
Features:
1) Big L/D ratio screw, special design for PET resin plasticing
and injection.
2) Large hydraulic motor, for high speed preform production.
3) Muliti water manifolds for preform mold
cooling sufficiently.
4) big injection weight, for high capacity production
5) Enlarge ejector force and stroke, to make preform eject out
easily.
6) A-Z solution for bottle&cap production line.
PET Preform Injection Molding Machine Specifiction:
Screw diameter mm 55 60 65 Screw L/D ratio L/D 22.9 21 19.4 Shot weight gram 605 720 845 Injection capacity cm3 665 791 929 Injection pressure Mpa 210 176 150 Theoretical injection rate g/s 176.5 210 245 Plastic capacity g/s 26.4 32.5 40 mm 280 Screw torque N.m 2000 Max screw rotate speed r/min 150 Clamping force ton 240 Opening stroke mm 530 Space between tie bars mm 555×555 Mould height mm 200~570 Max daylight mm 1100 Ejector force ton 6.15 Ejector stroke mm 135 Ejector quantity 9 Oil pump motor kw 22 Pump pressure Mpa 16 Heating power kw 18.5 Machine size M 6.2*1.6*2.1 Machine weight ton 8.0 Oil tank capacity L 440 International designation 2400-1390
