PRODUCT DESCRIPTION

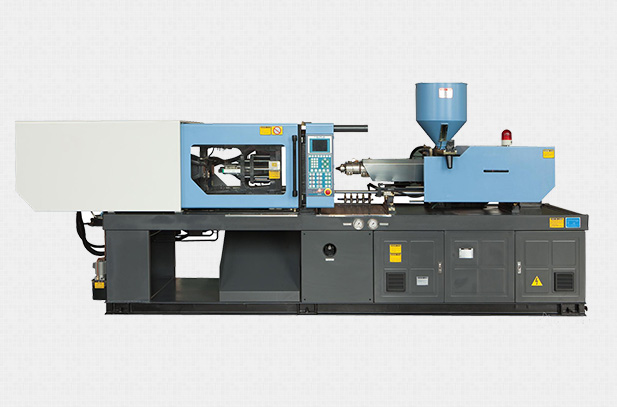

PET Preform Injection Molding Machine
Features:
1) Big L/D ratio screw, special design for PET resin plasticing
and injection.
2) Large hydraulic motor, for high speed preform production.
3) Muliti water manifolds for preform mold
cooling sufficiently.
4) big injection weight, for high capacity production
5) Enlarge ejector force and stroke, to make preform eject out
easily.

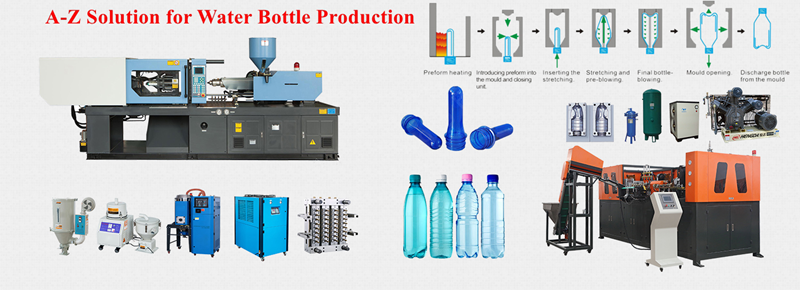

6) A-Z solution for bottle&cap production line.
PET Preform Injection Molding Machine Specifiction:
| Screw diameter |
mm |
70 |
75 |
80 |
| Screw L/D ratio |
L/D |
22.6 |
21 |
19.7 |
| Shot weight |
gram |
1225 |
1406 |
1600 |
| Injection capacity |
cm3 |
1346 |
1545 |
1758 |
| Injection pressure |
Mpa |
201 |
175 |
154 |
| Theoretical injection rate |
g/s |
370 |
423 |
484 |
| Plastic capacity |
g/s |
60.4 |
71.4 |
83.7 |
| Injection stroke |
mm |
350 |
||
| Screw torque |
N.m |
3490 |
||
| Max screw rotate speed |
r/min |
150 |
||
| Clamping force |
ton |
480 |
||
| Opening stroke |
mm |
770 |
||
| Space between tie bars |
mm |
760×760 |
||
| Mould height |
mm |
280~790 |
||
| Max daylight |
mm |
1560 |
||
| Ejector force |
ton |
11.34 |
||
| Ejector stroke |
mm |
195 |
||
| Ejector quantity |
|
13 |
||
| Oil pump motor |
kw |
45 |
||
| Pump pressure |
Mpa |
16 |
||
| Heating power |
kw |
28 |
||
| Machine size |
M |
7.5*2.1*2.45 |
||
| Machine weight |
ton |
20 |
||
| Oil tank capacity |
L |
850 |
||
| International designation |
|
4800-2710 |
||
