PRODUCT DESCRIPTION

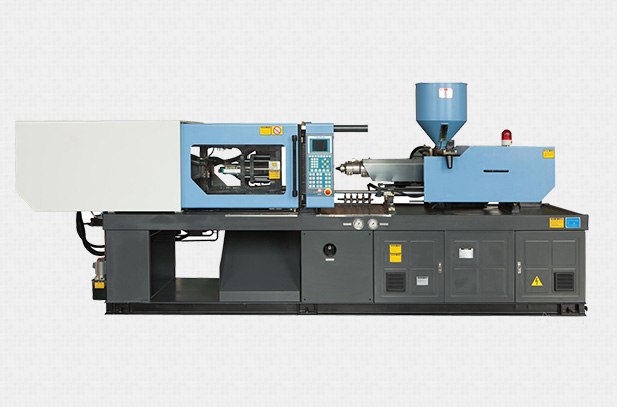

PET Preform Injection Molding Machine
Features:
1) Big L/D ratio screw, special design for PET resin plasticing
and injection.
2) Large hydraulic motor, for high speed preform production.
3) Muliti water manifolds for preform mold
cooling sufficiently.
4) big injection weight, for high capacity production
5) Enlarge ejector force and stroke, to make preform eject out
easily.
6) A-Z solution for bottle&cap production line.
PET Preform Injection Molding Machine Specifiction:
Screw diameter mm 80 85 90 Screw L/D ratio L/D 22.3 21 19.8 Shot weight gram 1948 2200 2466 Injection capacity cm3 2141 2418 2710 Injection pressure Mpa 188 167 149 Theoretical injection rate g/s 427 482 541 Plastic capacity g/s 80 100 118 Injection stroke mm 425 Screw torque N.m 5170 Max screw rotate speed r/min 150 Clamping force ton 550 Opening stroke mm 820 Space between tie bars mm 810×810 Mould height mm 350~820 Max daylight mm 1640 Ejector force ton 15 Ejector stroke mm 210 Ejector quantity 13 Oil pump motor kw 55 Pump pressure Mpa 16 Heating power kw 33 Machine size M 8.4*2.2*2.6 Machine weight ton 23.5 Oil tank capacity L 1000 International designation 5500-4040
